Part 1058-1

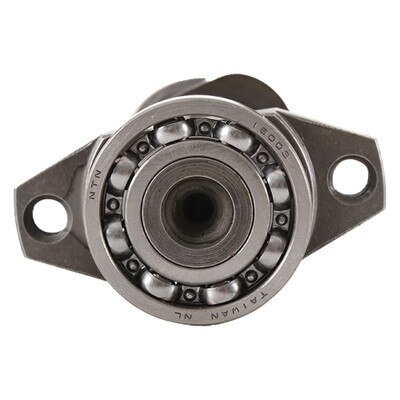

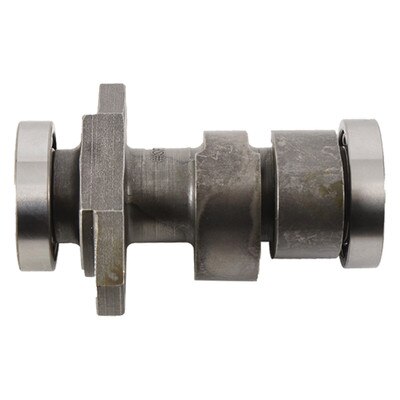

Hot Cams Camshaft Single Cam

  • Retail Price:
  • Your Price$272.95
Pack Size:eaQty / Unit:1
Description
Hot Cams Camshaft Single Cam
Fits Models
  • TRX 250 X (87-88,91-92); TRX 300 EX (93-08); TRX 300 X (09)
    • Specs
  • Stage: 1
  • Exhaust Cam Lobe Center103.500°
  • Exhaust Cam Lobe Duration at 1mm232°
  • Exhaust Cam Lobe Lift7.500mm
  • Exhaust Cam Valve Lash0.150mm
  • Intake Cam Lobe Center103.500°
  • Intake Cam Lobe Lift7.500mm
  • Intake Cam Valve Lash0.100mm
  • Intake Lobe Duration at 1mm238°

    • Instruction Sheet
