Part 2249-1IN

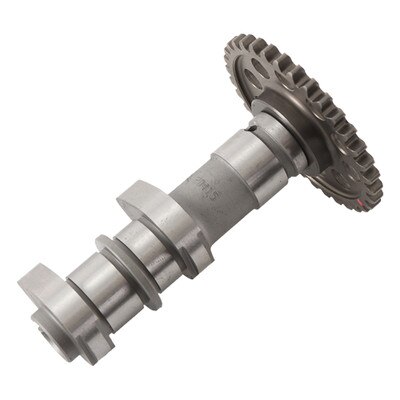

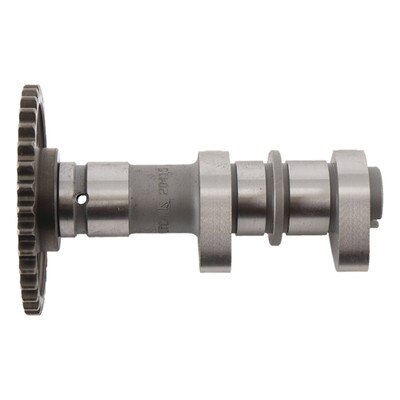

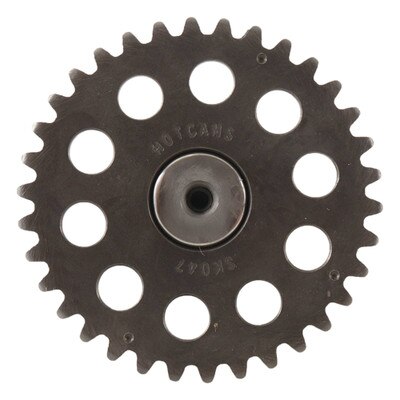

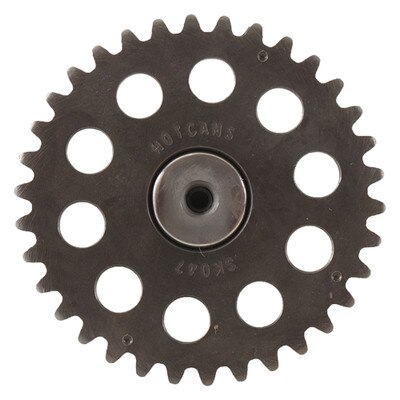

Hot Cams Camshaft Intake

  • Retail Price:
  • Your Price$272.95
Pack Size:eaQty / Unit:1
Description
Hot Cams Camshaft Intake
Fits Models
  • 400 DVX (04,06-08); DR-Z 400 (00-04); DR-Z 400 E (00-07); DR-Z 400 S (00-09,11-19,21); DR-Z 400 SM (05-09,13-19,21-24); LT-Z 400 (03-09,12-14); KFX 400 (03-06); KLX 400 R (03-04); KLX 400 SR (03-04)
    • Specs
  • Stage: 1
  • Intake Cam Lobe Center104°
  • Intake Cam Lobe Lift9.140mm
  • Intake Cam Valve Lash0.150mm
  • Intake Lobe Duration at 1mm230°
