Part 400-52273
J&N Electrical Products Alternator

  • Retail Price:
  • Your Price$248.92
Pack Size:eaQty / Unit:1
Description

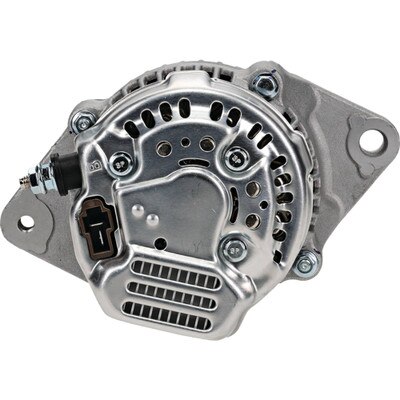

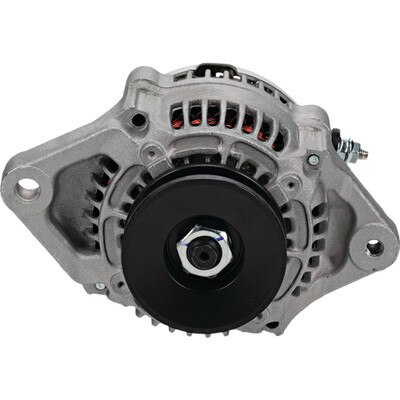

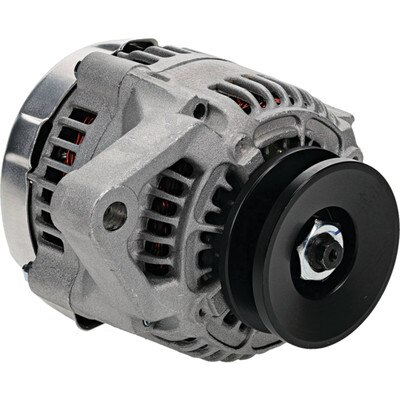

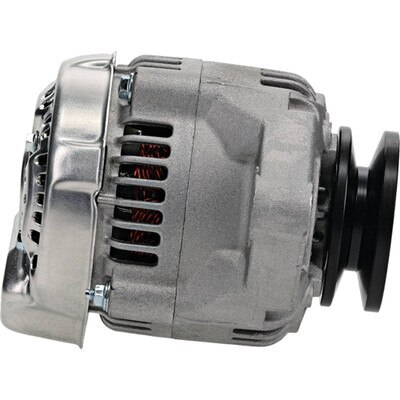

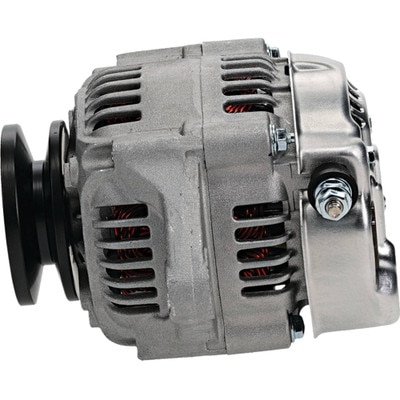

J&N Electrical Products Alternator
Specs
  • Lester11559, 11691
  • Volt12
  • Amps60
  • ConditionNew
  • Regulator Clock12:00
  • Rotation DirectionClockwise
  • Mount Hole ID 1M8x1.25
  • Mount Hole 1 TypeThreaded
  • Mount Hole 2 TypeUnthreaded
  • Mounting Ear Thickness0.630"
  • Mounting Ear Thickness16mm
  • Mounting Ear 2 Thickness0.815"
  • Mounting Ear 2 Thickness20.700mm
  • Fan LocationInternal
  • Regulator LocationInternal
  • Terminal ID 2B+
  • Terminal 2 SizeM6x1.00
  • Terminal ID 3IG
  • Terminal 3 SizeSpade
  • Terminal ID 4L
  • Terminal 4 SizeSpade
  • PolarityNegative
  • Number of Grooves1
  • Pulley TypeSolid
  • Pulley Outer Diameter2.709"
  • Pulley Outer Diameter68.800mm
  • Warranty1 Year
