Part 434-22011

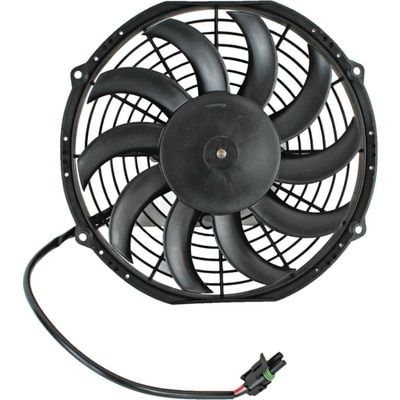

J&N Electrical Products Radiator Fan Assembly

  • Retail Price:
  • Your Price$233.42
Pack Size:eaQty / Unit:1
Description
J&N Electrical Products Radiator Fan Assembly
Fits Models
  • RANGER 2X4 (04); Ranger 325 ETX (15); Ranger 325 ETX [Euro] (15); Ranger 400 4x4 (10-14); Ranger 500 2x4 (05-09); Ranger 500 4x4 (04-06,08-13); Ranger 500 4x4 Crew (11-13); Ranger 500 4x4 Series 11 (07); Ranger 500 6x6 (04-05); Ranger 570 [Euro] (15); Ranger 570 [INTL] (14); Ranger 570 4x4 (14-15); Ranger 570 4x4 Crew (14-15); Ranger 570 4x4 Crew EPS (14-15); Ranger 570 Camo (14-17); Ranger 570 Crew Camo (15); Ranger 570 EPS (14-15); Ranger 500 4x4 (06)
    • Specs

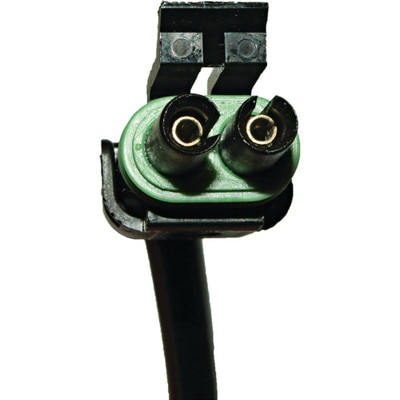

  • 2 Wire Lead @Mounting Hole Center to Center 245mm (Side to Side) @Mounting Hole Center to Center 142mm (Top to Bottom Hole)
  • Case Bolt Length3.110"
  • Case Bolt Length79mm
  • Fan AttachRetaining Clip or Ring
  • IncludesBlower Wheel
  • Motor SpeedsSingle Speed
  • Shaft OD0.315"
  • Shaft OD8mm
  • Volt12
  • Wheel OD250mm
  • Wheel OD9.843"
