Part 1024-2

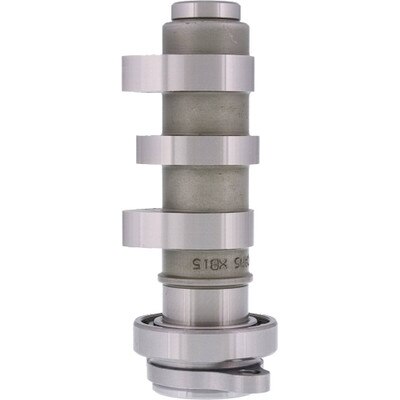

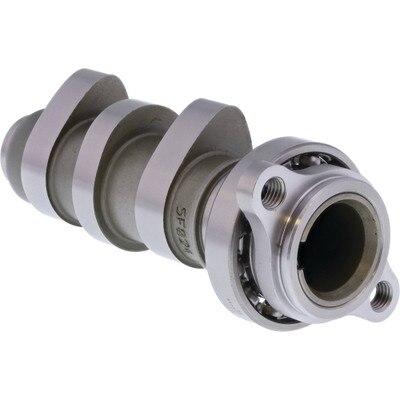

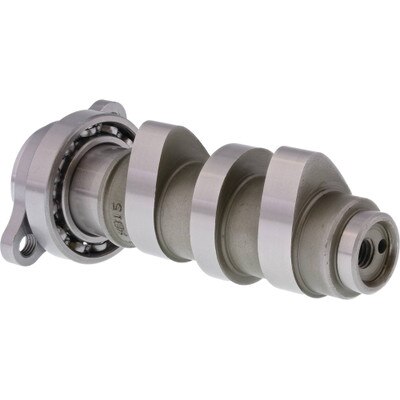

Hot Cams Camshaft Single Cam

  • Retail Price:
  • Your Price$400.95
Pack Size:eaQty / Unit:1
Description
Hot Cams Camshaft Single Cam
Fits Models
  • CRF 450 R (02-06); CRF 450 X (05-07); TRX 450 ER (06-07); TRX 450 R (04-09)
    • Specs
  • Stage: 2
  • Exhaust Cam Lobe Center104.500?
  • Exhaust Cam Lobe Duration at 1mm270?
  • Exhaust Cam Lobe Lift8.800mm
  • Exhaust Cam Valve Lash0.280mm
  • Intake Cam Lobe Center112?
  • Intake Cam Lobe Lift10.100mm
  • Intake Cam Valve Lash0.150mm
  • Intake Lobe Duration at 1mm248?

    • Instruction Sheet
