Part 4091
Hot Rods Crankshaft

  • Retail Price:
  • Your Price$937.95
Pack Size:eaQty / Unit:1
Description

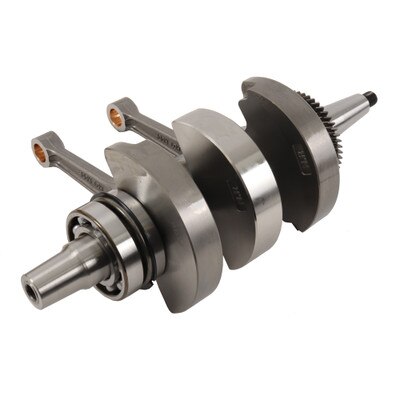

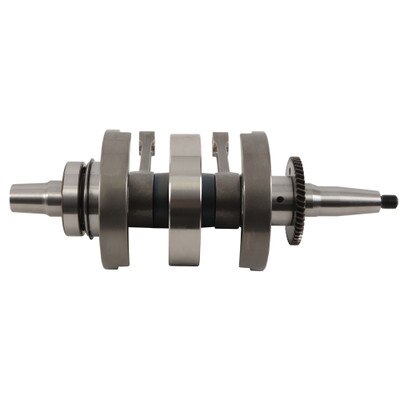

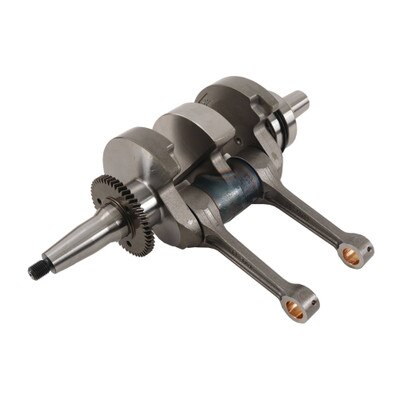

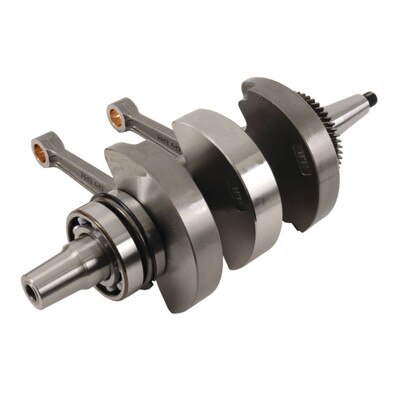

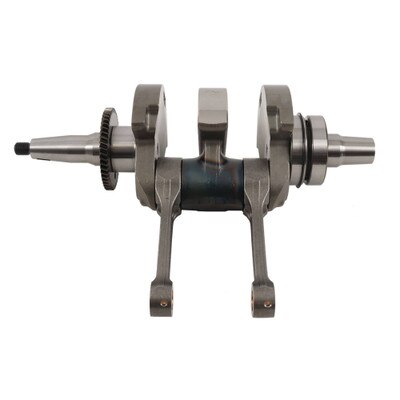

Hot Rods Crankshaft
Fits Models
  • Ranger 800 4x4 (08-17); Ranger 800 4x4 Crew (10-14); Ranger 800 4x4 MidSize (13-14); Ranger 800 4x4 XP (12); Ranger 800 6x6 (10-17); RZR 4 800 (10-14); RZR 800 (08-14); RZR S 800 (09-14); Sportsman 800 4x4 (05-14); Sportsman 800 4x4 HO (08-10); Sportsman 800 6x6 (09-14); Sportsman 800 X2 (07-09); Sportsman Forest 800 4x4 (12-14); Sportsman Forest 800 6x6 (12-15); Sportsman Touring 800 (08-09); Sportsman Touring 800 [INTL] (08-09); Ranger 800 4x4 (12); Ranger 800 6x6 (10-16)
    • Specs
  • Factory trued and balanced
  • Heavy-duty OEM replacement crankshaft assembly
  • Includes connecting rods
  • Ready to install
  • Connecting Rod Side Clearance0.15-0.45mm
  • Engine Type4-Cycle
  • Final Displacement800cc
  • Heavy DutyTRUE
  • IncludesCrankshaft, Connecting Rods and Rod Plain Bearings
  • Stroke75.600mm
  • TypeStandard

    • Instruction Sheet

    /core/media/media.nl?id=9924373&c=618898&h=n0f0koMwtD2eE1BdyrBBpPa2zgt4y9RKvvNHFqltRff8quZD

    Technical Sheet

    /core/media/media.nl?id=9924533&c=618898&h=vvU57yAsAr9lv2xPfv1SwyjogvItsCp5d5xh4L1_J13-49xW
