Part 8641
Hot Rods Connecting Rod Kit

  • Retail Price:
  • Your Price$196.95
Pack Size:eaQty / Unit:1
Description

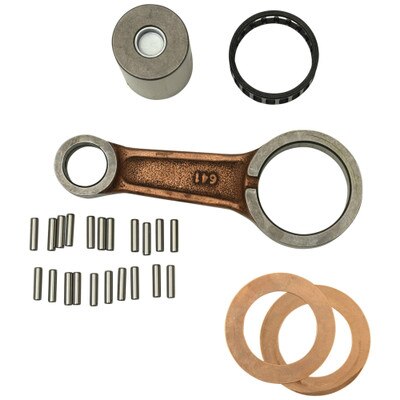

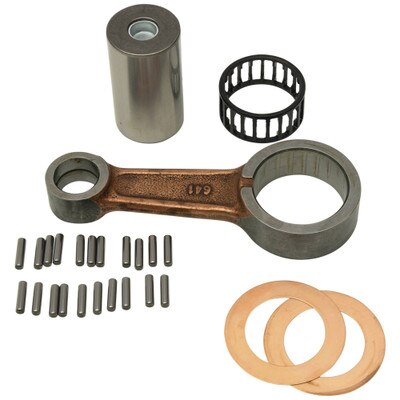

Hot Rods Connecting Rod Kit
Fits Models
  • YFZ 450 (06-09,12-13)
    • Specs
  • Connecting Rod Big End I.D.42mm
  • Connecting Rod Big End Width19.950mm
  • Connecting Rod Center-to-Center101.500mm
  • Connecting Rod Small End I.D.20mm
  • Connecting Rod Small End Width18.050mm
  • Engine Type4-Cycle
  • IncludesConnecting Rod, Crank Pin, Crank Pin Bearing and Thrust Washers
  • Pin Length60.800mm
  • Washer THK0.500mm

    • Instruction Sheet

    /core/media/media.nl?id=9924628&c=618898&h=Oj4kpyV8-JD-0kQn-fXnkb4OjjPuVFoRBz2Ow6iSQxV3liRo

    Technical Sheet

    /core/media/media.nl?id=9924506&c=618898&h=N9Yg1BQ1_TS0M9A_6GyPDlnVaqSKIa9Pl93PpYPxFHgQG9x6
